SCCM Reporting is a great way to see insight of your inventory and data. There’s many custom reports out there on the internet. If you download a custom report, you’ll have a RDL file. This RDL then need to be uploaded on your report server. You can do it manually using the web portal or use a script. This post will show all the ways you can upload an RDL file on an SCCM Reporting Point.

An RDL file is simply an XML application and a standard proposed by Microsoft for defining reports.

SCCM Upload RDL file Requirements

SCCM Upload Rdl file

Upload the RDL file manually

We suggest uploading your file into a Test folder before releasing the report in production. If you have multiple report to upload (Ex : if you are a subscription member and want all reports on your reporting point), see the next section to upload using a script.

  • Open a web browser and browse to your reporting point
  • Usually this will be http://yourreportingpoint/reports

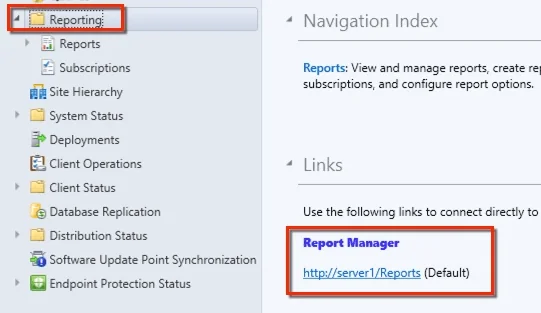

  • You can also double check your reporting point URL in the SCCM console in Monitoring / Reporting
  • The Report manager URL will be listed there
SCCM Upload Rdl file

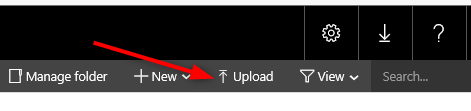

  • Browse to the respective folder where you want to upload your file and click Upload File.
SCCM Upload Rdl file

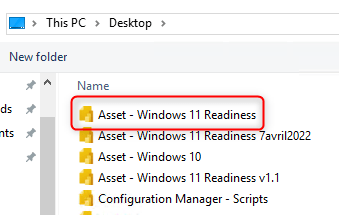

  • Find your file location, and select the file. If you already have a report to that name a dialog box will ask if you want to overide the report.

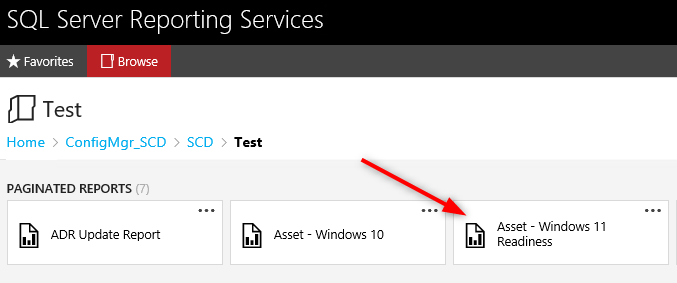

  • If the upload is successful, the report will appear else you will have an error message explaining the failure. Any unhealthy RDL file will fail at this process.
SCCM Upload Rdl file

Change the Data Source

Once your RDL file is uploaded, there are still a few things to change to make it work perfectly.

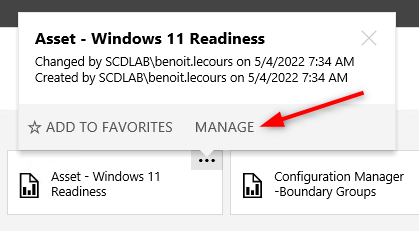

  • Click the 3 little dot, an options menu will appear. Click on Manage.

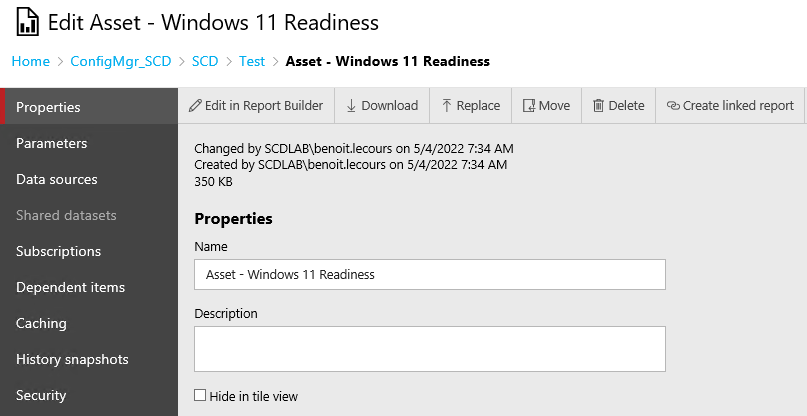

  • In the Properties tab, change the description if needed. This description will be displayed to describe the report to your users, click Apply
SCCM Upload Rdl file

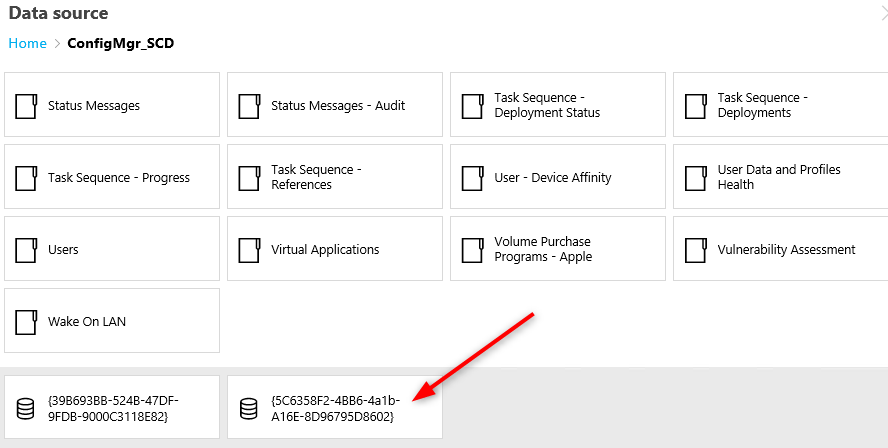

  • In the Data Sources tab, select your data source or the report will not process. To select your data source, click on Browse and select an existing data source in the appropriate folder. It will be at the bottom of the folder structure.
  • The SCCM default datasource is always {5C6358F2-4BB6-4a1b-A16E-8D96795D8602}
SCCM Upload Rdl file
  • Click Apply

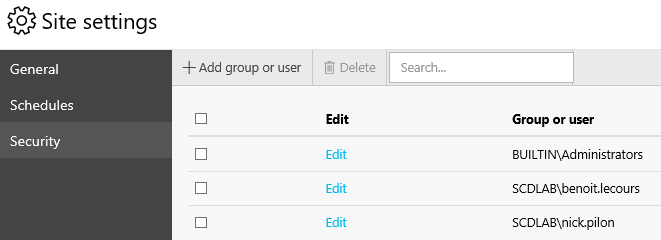

  • (Optional)In the Security tab, add security groups or users who want to run your report. The security settings will be enforced by the new parent folder security settings. Don’t be surprised if the access change after moving the report into production.
Upload RDL file to Report Server

Automaticaly Upload RDL File using a script

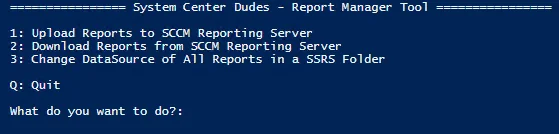

If you have multiple RDL files and data sources to change, you can use our SCCM Reports Manager Tool freely available on my Github account.

The tool allows to :

  • Upload multiple reports from a specific folder — Useful if you have multiple RDL files to upload at once
  • Download all report from a specific SSRS folder — Useful if you have multiple custom reports and are doing a migration to a new reporting point
  • Change data source of all reports from a specific SSRS folder — Useful if you upload multiple new reports and need to change their data sources

The script needs PowerShell 2.0 and has been tested on SQL 2012, 2016 and 2019 Reporting Point.

Summary

Adding a report with the web portal isn’t the fastest way but it requires the least prerequisites. It’s pretty straightforward. Make sure your SCCM RDL file is not corrupted and the data source is well configured. Lastly, verify security settings before sending the link to users.
